Iodine Filling Machine / Alcohol Filling Machine From Chinese Supplier
Filling heads Output / hours
8 heads 1500 bottle/ hours
16 heads 2500-3500 bottle/ hours
Product introduction

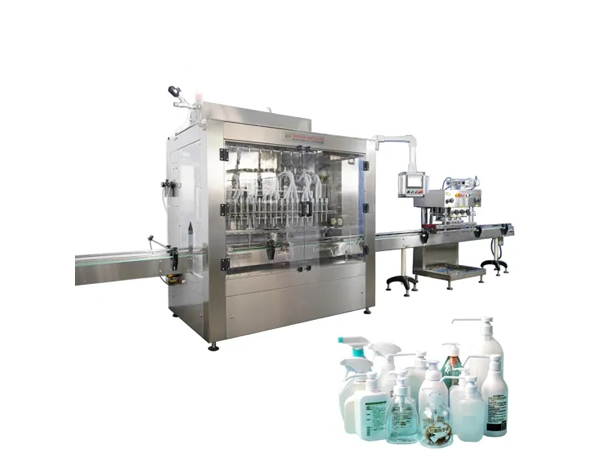

This machine is a closed-type iodine filling line, which includes automatic filling, automatic cap unwinding, automatic capping, screwing, and receiving. The machine has a beautiful and elegant appearance, high production efficiency and easy operation. The machine is programmable by Siemens PLC. Control, 7-inch touch screen human-machine interface system, equipment operation data at a glance. This machine integrates photoelectric sensing, automatic compensation, and pneumatic execution into one high-tech filling equipment. All the data of this machine are realized on the touch screen. It also has the function of anti-bubble and anti-bubble to enhance the filling function, accurate measurement, and is widely used in pesticides; daily chemicals; chemical and other high-bubble, antiseptic liquids. The materials used in this machine are all anti-corrosion materials, including 304 stainless steel, 316L stainless steel, polytetrafluoroethylene and other anti-corrosive materials. The accessories used are imported electrical intelligent modules PLC, touch screen, and frequency converters. They are used by Siemens Siemens pneumatic solenoid valves. Taiwan Yadeke series, with two start and stop buttons, a waste recycling system on the body, all fertilizers are fully recovered, so that you can get the best solution to production problems.
Applicable products Iodophor glutaraldehyde hydrogen peroxide toilet toilet spirit alcohol etc.
Model MGFB-6B--8L
Filling heads 6, 8, 10, 12, 16, 20
Power supply 220V 50HZ
Air pressure 0.5 MPA
Dimensions (length, width, height) 2000mm 750mm 2200mm
Applicable bottlenecks 52mm --- 80mm
Applicable bottle height 50mm --- 300mm
Total power 450w (excluding air pump)
Filling speed (500 ml) 1000 ---- 5000 bottles per hour
Filling accuracy ± 1%
