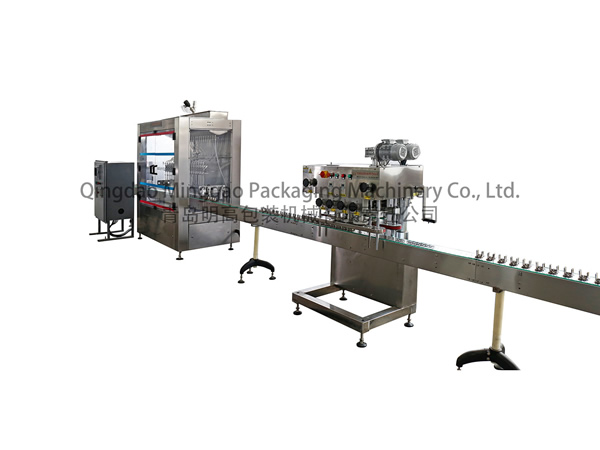

Automatic Bleaching / Soap Liquid Filling Sealing / Labeling Machine / Disinfectant / Laundry Liquid / Filling Machine
Filling heads(Single row) Output / hours
8 heads 1500 bottle/ hours
16 heads 2500-3500 bottle/ hours
Filling heads(Double row) Output / hours
16 heads 5000-6500 bottle/ hours
20 heads 7000-8500 bottle/ hours
24 heads 9000-12000 bottle/ hours
Automatic Bleaching / Soap Liquid Filling Sealing / Labeling Machine / Disinfectant / Laundry Liquid / Filling Machine
Features of this machine:
Corrosion resistance, oxidation resistance, convenient maintenance, suitable for liquids and pastes. Adopt double-row reciprocating piston quantitative filling system, speed of 6000-8000 barrels per hour, stable performance, universal use of large and small bottles (such as the optional automatic production change system can realize one-touch production and precise positioning on the touch screen)
1: Technical parameters
Number of filling heads 8-20 heads
Filling capacity 300ml-5000ml
Power supply 380V 5.5Kw
Applicable bottle diameter Ф30mm-Ф150mm
Filling error ≤ ± 0.5%
Production speed ≤8000 bottles / hour (calculated with 1000ml water or paste medium)
Dimensions 2000mm × 1200mm × 2300mm
Machine weight 1100 kg
Air source requirements 0.4Mpa-0.6Mpa
2: Introduction to corrosion and oxidation resistance technology
1 The contact part between the machine and the material is made of 316L stainless steel (including the feeding box, piston cylinder, rotary valve, filling plug, PTFE hose, other parts are GB 304 stainless steel, and the piston seal is resistant Corrosion and wear-resistant PTFE (polytetrafluoroethylene) prevents the possibility of corrosion from the material.
2 In order to avoid air corrosion, the upper part of the closed case is designed with an exhaust device, and in order to avoid the corrosion of electrical appliances by the air, the control box is separated from the body, which greatly reduces the failure rate of the electrical part.
3: Introduction of convenient maintenance technology
1 This machine has one-button discharge and one-button cleaning. For example, when the workshop is completed, the worker only needs to press the discharge button on the touch screen maintenance page, the piston will suck the residual material back to the bin, then open the water valve, and press the cleaning function. The equipment will automatically reciprocate (the number of cleaning can be set up)
2 easy to replace the seal. If the seal ring of the cylinder body is damaged, you can press the button to replace the seal ring, the device will automatically punch the remaining material in the material tank into the material box, and then automatically take off the piston to facilitate the replacement of the seal ring.
4: High filling accuracy
This machine uses the imported brand Taiwan Delta servo motor to ensure the accuracy of the filling machine (generally controlled at 0.3%)
Local machine introduction:
This machine uses a special three-way filling valve, which is suitable for filling liquid and cream products, especially for high viscosity materials (such as laundry liquid, hand soap, fruit juice, thick sauce, hot pepper sauce, tomato sauce, seed coating agent) , Microemulsions, suspensions, etc.), the effect is relatively obvious, and the accuracy is high. This machine adopts PLC programmable control, and is equipped with a 7-inch touch screen human-machine interface system. The filling power is precisely controlled by Delta servo motors, so that the error is accurate to two thousandths. Automatic bottle feeding, automatic filling and automatic bottle discharging are implemented. , Electrical appliances, pneumatic components are all international brands, ensuring excellent quality and long-lasting and stable performance. This equipment is simple in structure and easy to operate. It is the ideal filling equipment for paste materials in China.
The machine is equipped with a filling bulkhead to prevent dripping and drawing, ensuring no dripping or drawing after filling.
Performance advantages:
Control system--Siemens PLC control system is used to adjust the filling dose randomly and finely.
Operation interface--7-inch Siemens color screen touch operation interface, intuitive, simple, safe and reliable
Improved function-Anti-drip device is provided for feeding, which can be equipped with diving filling function according to the characteristics of the material. (This function can be selected)
Electrical components-all famous international brands are used to ensure the safety, reliability and high accuracy of the equipment;Mechanical parts-The parts in contact with the material are made of high-quality 316L stainless steel,
The rest of the machine parts are made of high-quality 304 stainless steel.
Counting detection-real-time counting, intuitive reflection of work output.
Filling test-no bottles without filling, not enough bottles without filling
Maintenance status-the machine can be easily disassembled, cleaned and maintained.
Changing specifications-When changing the filling specifications, only simple adjustments are needed to make it easy.
Environmental protection configuration-equipped with environmental protection framework, making the machine's operating environment more clean and hygienic. (This environmental protection configuration can be optional)
Applicable products Liquid, paste, etc.
Model MGFB-6GS-16L
Filling heads Optional 8, 10, 12, 16
Power supply 220V 50HZ
Air pressure 0.5 MPA
Dimensions (length, width, height) 2000mm 1000mm 2400mm
Applicable bottlenecks 52mm --- 120mm
Applicable bottle height 50mm --- 300mm
Total power 1500w
Filling speed (1000 ml) 6000-8000 bottles per hour
Filling accuracy ± 0.5%
