The main parameters:
Number of filling heads 24 filling heads (12, 20, 24 filling heads are optional)
Filling volume 40ml-1000ml
Power supply 220V / 380V 1.5Kw
Applicable bottle diameter Ф40mm-Ф100mm
Filling error ≤±1%
Production speed ≤12000 bottles/hour (calculated with 500ml water as medium)
Size 2000mm×1400mm×2500mm
Machine weight 600 kg
Air source requirements stable 0.45Mpa-0.55Mpa air source
Price 1000US dollar-25300US (dollarIncluding 6m double-row conveyor line )
Technical performance:

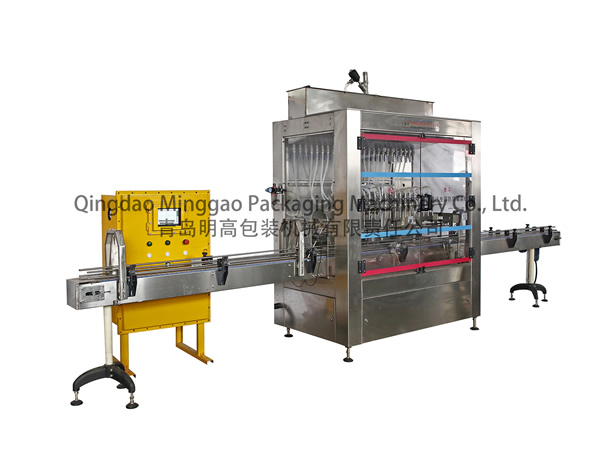

This machine adopts PLC programmable control, is equipped with a touch screen man-machine interface system, uses constant pressure to fix the flow channel parameters, and controls the filling time to achieve different metering filling. The machine uses double-row reciprocating filling, which will not delay the entry and exit of the second row of bottles during the filling process, thus achieving the double capacity of the traditional single-row filling machine. This machine is suitable for enterprises that need mass production in pesticide, chemical, daily chemical and other industries.
The device has a simple structure and is suitable for large bottles and small bottles (it can also be equipped with our company's patented function: automatic production conversion device. The device can complete the automatic adjustment of the bottle type on the touch screen, and can complete the bottle type conversion pole within one minute. Dadi saves production change time and precision that manual adjustment cannot guarantee. It is the most ideal filling equipment in China.
Performance advantages:
1. Control system: Adopt Siemens PLC control system, random fine adjustment of filling dose.
2. Operation interface: 7-inch operation color screen interface, man-machine operation interface is simple, safe and reliable.
3. Functional improvement-The bottle plugging knife has been increased to the middle three groups, which solves the phenomenon of squeezing bottles caused by filling heavier bottles during the online filling of multiple bottles. (This feature is optional)
4. Real-time alarm-automatic alarm when a fault occurs, and automatically stop when a major fault occurs.
5. Electrical components-all international famous brands are used to ensure the safety, reliability and high precision of the equipment;
6. Mechanical parts-Parts in contact with materials use high-quality 316L stainless steel and non-toxic corrosion-resistant PTFE hose. The rest of the machine parts are made of high-quality 304 stainless steel.
7. Counting detection real-time counting, intuitively reflect the work results.
8. Filling test-bottles are not filled, and the number of bottles is insufficient.
9. Special requirements for function expansion can be configured according to customer requirements, such as: material sealing, heating, sterilization, exhaust, etc.
10. Maintenance situation-The machine complies with GMP requirements and can be easily disassembled, cleaned and maintained.
